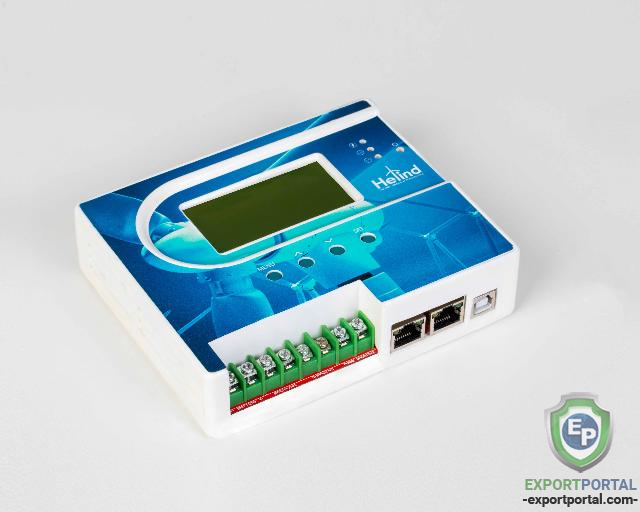

Wind turbine controller (charger)

Feautures

Automatically controls wind turbine.

So that,

1. when the battery reaches the maximum power capacity;

2. when the wind speed exceeds the limit (provides wind turbine protection from storms);

the controller prevents the battery from overcharging (in the first case) and the turbine from storm damage (in the second case).

In addition, the controller displays some real-time information on the LCD/LED screen.

• current energy level in the battery
• wind speed
• the amount of real-time energy transmitted from the turbine
• the types of braking

Blue light - charging

Yellow light - braking

Red light - 3-phase braking

The main advantages of our controller are:

1. Braking according to wind speed
2. Voltage braking
3. 3-phase braking - reduces the risk of accidents by ensuring a complete stop of the turbine

Additional technical parameters

LED indicators

Blue - charging
Yellow - braking
Red - 3 phase braking

3-phase dump load

Modifiable
(recommended 12V system - 13.5±1Vdc | 24V system - 27±1Vdc)

Wind turbine recharge voltage

Modifiable
(recommended 12V system - 15±1Vdc | 24V system - 30±1Vdc)
