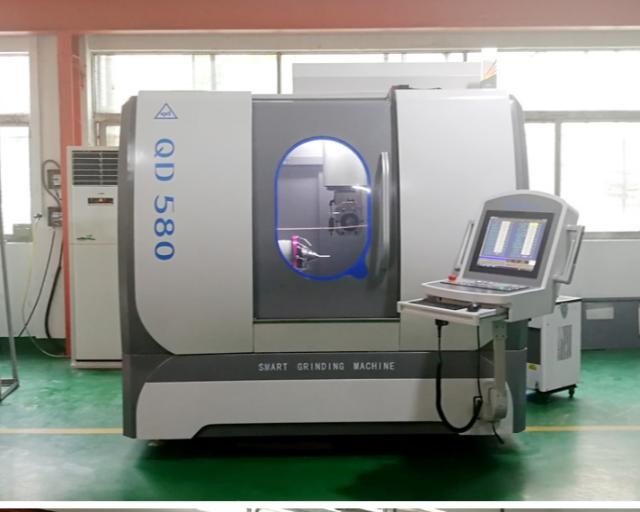

QD580 5-axis CNC industrial end-mill drill-bits forming tools grinder

QD580 5-axis CNC tool grinder is a newly developed by Qiandao Machinery, which is a great tool grinding center. It could produce and sharpen all kinds of milling cutters, drilling and forming tools

It looks magnificent and smart and has a much more humanism design, the entire machine operation table can be realized. Machine body is made of natural granite and that has been stable performance in the production.

The spindle grinding head adopts high rigidity, high-precision and with high power (12kw) direct drive frequency conversion. It can be installed with 2-4 pieces of flange grinding wheels. It can satisfy the technical requirement that can one time completes clamping and grinding the front, back and end face of the tool.

The main shaft adopts dd direct drive, bearing is NSK precision spindle bearing, equipped with W25 precision cylinder clamp which matches with Xiao Berlin precision chuck. The workpiece is clamped by pneumatic.

The machine tool is a 210MA-5E 5-axis SYNTEC CNC system and Japanese Igawa Servo Unit. It uses the British Renishaw LP2DD precision probe, silver precision rolling wire rail and ball screw, Hyde Han encoder of Germany. Meanwhile, in order to more ensure the process the precision of the milling tools, the rotating shaft of the machine is controlled by DD direct drive full closed loop, which makes sure that will be superior performance and great precision of the milling tools

The machine is fully enclosed appearance (front movable pull door, right and rear maintenance door) with electronic handwheel, special start and stop button and foot switch, equipped with and automatic cooling system and a coolant filter tank, an automatic lubrication device and a suction interface,an alarm buzzer, electrical box cooling air conditioner, making the operation and maintenance of machine simple and convenient.

Workpiece accuracy

Grinding workpiece round runout ≤0.005mm workpiece surface roughness ≤ ra0.2

Standard:

Main engine of machine, SYNTEC CNC system 210MA-5E and servo unit, domestic probe,12KW precision direct drive grinding head, workpiece pneumatic clamping device, suction interface, grinding wheel blue, automatic lubrication device, standard work, automatic cooling device.

Option:

18KW Direct Drive Motor Spindle, Malek Knife Handle & Clip, Filter System, Special Fixture, Grinding Wheel, Automatic Feeding Device, British Rainesho LP2D Tester, Mapos Tester, etc.

Parameter

CNC system SYNTEC  210MA-5E Grinding software QD Max diameter of workpiece 200 mm Max grinding length 200mm Max  groove depth 20mm Max weight of  workpiece 20Kg Max motor power of  grinding head(Direct drive motorized spindle ) 12KW  The size of the grinding wheels(CBN and diamond) Φ50～Φ200mm Motorized spindle revolving speed( frequency control) 0-8000rpm Travel Y-axis 350(-100～250)mm Travel of the operating platform(X/Y/Z) X：520 / Y：540 / Z：350 Linear axis rapid traverse speed 10m/min Workpiece spindle revolving speed (A-axis) 200rpm A-axis rotation angle ∞ A-axis  hole cone ISO50 Pneumatic clamping workpiece range 2~25mm Malek chuck clamping workpiece range 3~32mm Max rotation speed (C-axis) 75rpm C-axis rotation range 320°（-225°~95°） Workpiece spindle center height 135mm Workpiece spindle runout ≤0.005mm Grinding head  spindle runout ≤0.005mm Cylinder clamping force adjustment range  440-480kg Linear resolution 0.00lmm Rotating axis resolution 0.00l° Cooling pump power 3P Cooling tank volume 200 L Source AC  380V  50HZ   (three-phase) Total machine power 20KW Machine size 2200×1600×2400mm Machine weight( approximately) 5T
