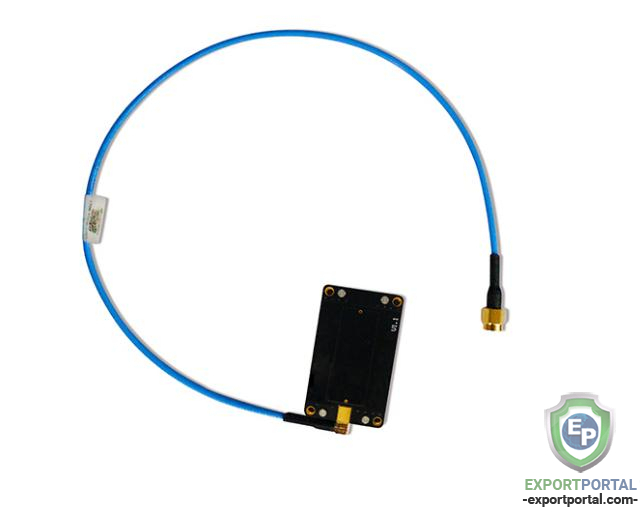

Near Field Test of Flat Plate Antenna Coupler for wifi power test

Technical Parameter:

Parameter    Min.      Typ.     Max. Frequency Range (GHz) 2.0 —  6.0 Insertion Loss (dB) 8 —  25 Polarization Mode —

vertical polarization

—  VSWR  —  —  2.5 Input Impedance (Ω) —  50 —  Connectors —  MCX —  Operating Temperature (°C) -45 normal temperature +70 Storage Temperature (°C) -55 —  +85 Installation Mode —

screw retention

—

Physical Dimension(mm)

—  30*50*8 —  Weight (g) —  250 —
