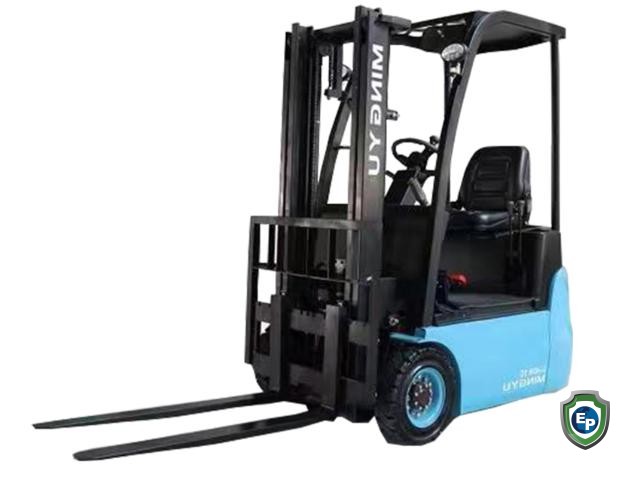

MYZG Electric Forklift
B2B
No b2b info.
Product information
- Year: 2023
Description
Product Feature
cpc10 lithium battery forklift, super long battery life, upgraded drive axle, realized small front overhang design, improved longitudinal stability of the whole machine High-mounted rear axle structure, improved lateral stability of the whole forklift, large arc roof guard and streamlined design, beautiful appearance , equipped with mast buffer, rear axle buffer and rear extension valve control, greatly improving the driver's operating comfortKey highlights
●Improved appearance and driver's vision●Matching electric special tires, drive energy saving of more than 10%●Improved operating comfort
Parameter
- Model CPD10 Power
- Type accumulator rated load lifting capacity 1000kg
- Load centre distance 400mm load centre distance
- Sit down length with fork 2482mm without fork 1628mm wideth 910mm height
- Do not raise the mast height 1760mm
- Overhead guard height 1920mm
- Max height at working 3320mm
- Distance from seat surface to top guard frame 955mm wheel base 1140mm front overhang 285mm rear overhang 216mm front wheel track 806mm rear wheel track 350mm minimum ground clearance 71mm
- Standard lifting height 2500mm free lifting height 100mm
- Fork adjustment range 160-782mm minimum turning radius 1450
- Minimum right-angle channel width(1100*1100 pallets) 2935mm
- Gantry angle (front/rear) 5/8°
- Maximum lifting speed without load 320mm/s
- Maximum lifting speed with full load 250mm/s
- Maximum operating speed without load 12Km/h
- Maximum operating speed with full load 11Km/h
- Max gradeability with full loading 10%
- Weight unladen 1560 Kg
- Number of wheels = driving wheels/steering wheels 2/2
- Tyre type (front/rear) Pneumatic tyre/pneumatic tyre tyre size(front) 4.00-8 tyre size(rear) 3.50-5
- Brake/driving brake Foot Brake parking brake Hand Brake Battery voltage/capacity 57.6V/105Ah drive motor power 3Kw Oil pump motor power 3Kw fork length 1070mm
