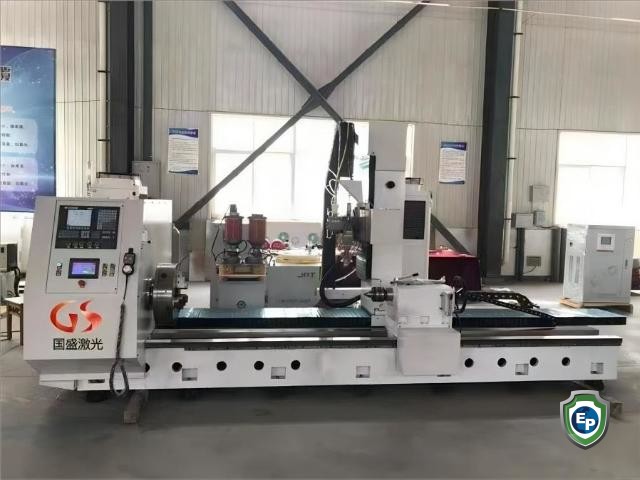

High-speed Laser Cladding Machine

Products Description

High Speed Laser Cladding Equipment is a kind of equipment that uses laser technology for cladding processing. Cladding is a surface treatment technology that deposits one or more layers of materials on the substrate by heating and melting on the surface of the substrate to form a coating with specific properties and functions. The Equipment scans and heats the material at high speed through the laser beam, so that the material can be quickly melted and solidified on the substrate, so as to achieve efficient and accurate cladding processing.

Item

• Specification
• Laser Power
• 6-12KW
• Laser Type
• Fiber Laser
• Work Envelope Diameter
• 600mm
• Laser wavelength
• 900-1100nm
• Maximum Cladding Speed
• 20m/min
• Cladding thickness
• 0.1-3mm
• Cladding width
• 0.5-5mm
• Positioning Accuracy
• ±0.05mm
• Repeatability
• ±0.03mm
• Powder Feeder Capacity
• 6L (single or double tube as an option)
• Cooling System
• Water cooling
• Power Supply
• AC 380V, 50/60Hz, 3-phase

Technical Advantages

High Speed Laser Cladding Equipment uses lasers to deposit materials onto surfaces, creating a protective or decorative layer. This process has several technical advantages that make it an ideal choice for many industrial applications:

1. Good environmental protection: this process does not involve the use of harmful chemicals or solvents that can pollute the environment. Instead, the lasers used in the process are highly precise, and they can deposit materials with great accuracy, reducing waste and minimizing the environmental impact.

2. Increased efficiency: the equipment can quickly deposit materials onto surfaces, reducing the time required for coating or repair. This high speed can help manufacturers to improve their productivity and reduce costs by completing jobs in less time.

3. Reduced distortion: the process uses a highly focused laser beam that minimizes the heat-affected zone, reducing the chances of warping or distortion of the workpiece. This ensures that the final product is of high quality, with no surface defects or distortions.

4. Wide range of materials: the versatility makes it ideal for a variety of applications, from aerospace and automotive to medical and electronics industries. The ability to use different materials also allows manufacturers to create customized products that meet specific requirements.
