Flatness and Roller Wave Distortion Measurement

Flatness and Roller Wave Distortion Measurement

Function: Measurement of arcuate form and wave form of tempered glass

Related Standard:

1) GB 15763.2 Safety glazing materials in building– Part 2: Tempered glass

Clause 5.4 Camber measuring

2) AS NZS 2208 Safety glazing materials in buildings

Clause 2.5 Flatness requirements

Technical Data:

Resolution: 0.01 mm

Measuring Span: 30 mm-1000 mm ( Customizable)

Working Temperature: 0~+40°C

Working Humidity: ≤80%

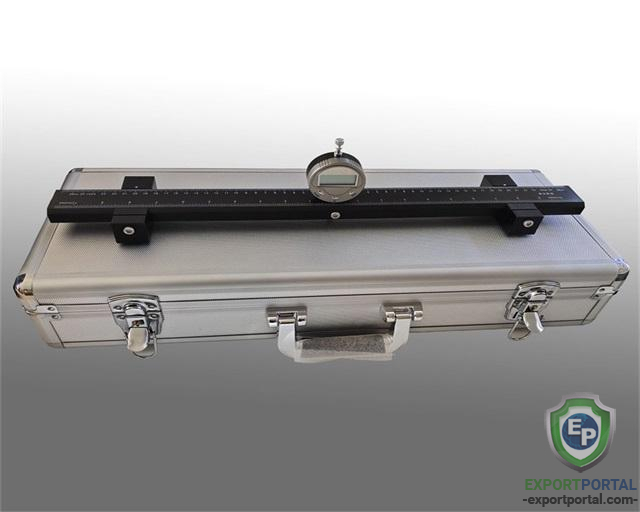

We provide exquisite packaging customized for customers.

Instruction:

Adjust the measurement and set up to track the maximum data. Adjust the span of the support block according to request.

Adjust the position of measuring head, to ensure that the measuring head is beyond 2mm-3mm of the plane of three support feet.

Gently stick the surface of the glass to ensure that three supporting feet are able to touch the glass.

Slide the measure location and read the data.

Product Features:

Continuous measurement and monitoring of the flatness of the glass, data display and recorded.

Simple operation, fast measurement, low cost, widely used in the flatness measurement of glass.

The specifications of the equipment are various; the measuring span (300 mm, 500 mm, 800 mm, 1000 mm) can be customized according to customers’ requirements.
