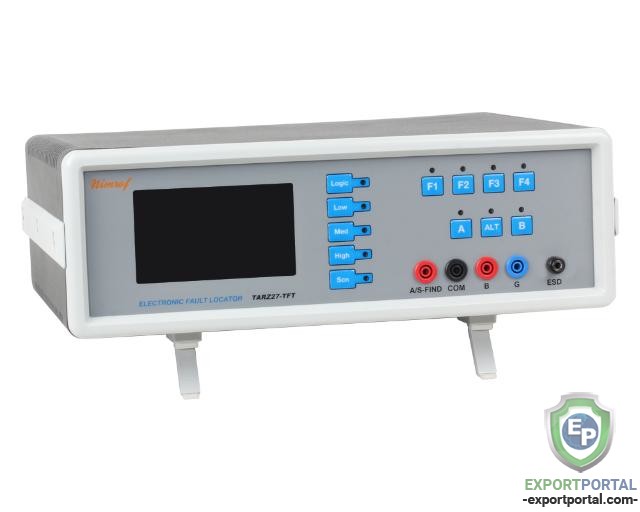

Curve Tracer, Electronic Fault Locator TARZ27-TFT

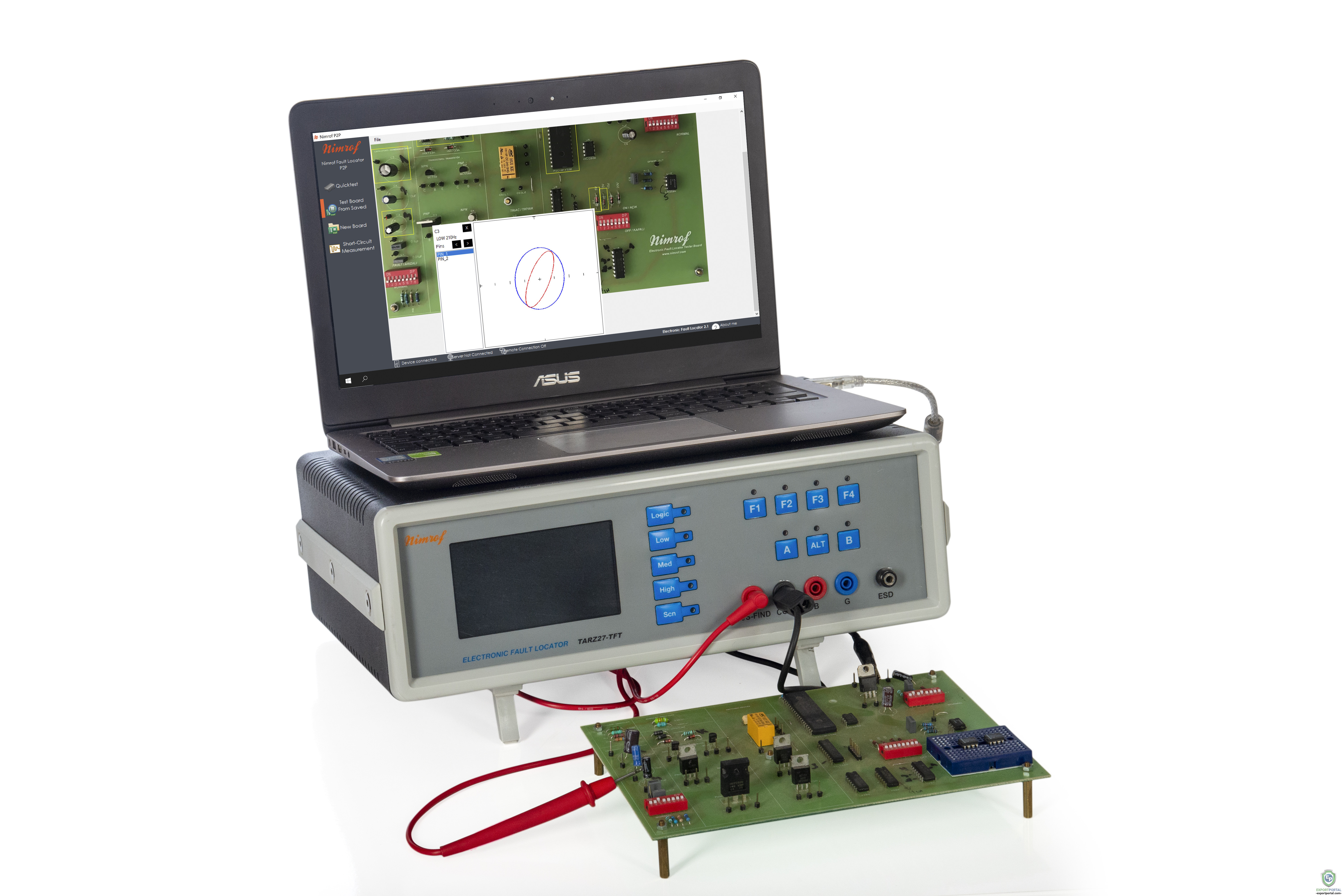

           Nimrof TARZ27-TFT Electronic Fault Locator is designed to complement conventional test instruments in the debug and troubleshooting process. Nimrof TARZ27-TFT Curve tracer  is suited for todays varied signal circuit cards where Analog and Digital are mixed together. It provides to find faulty component on the electronic board in a short time by using power-off test method.

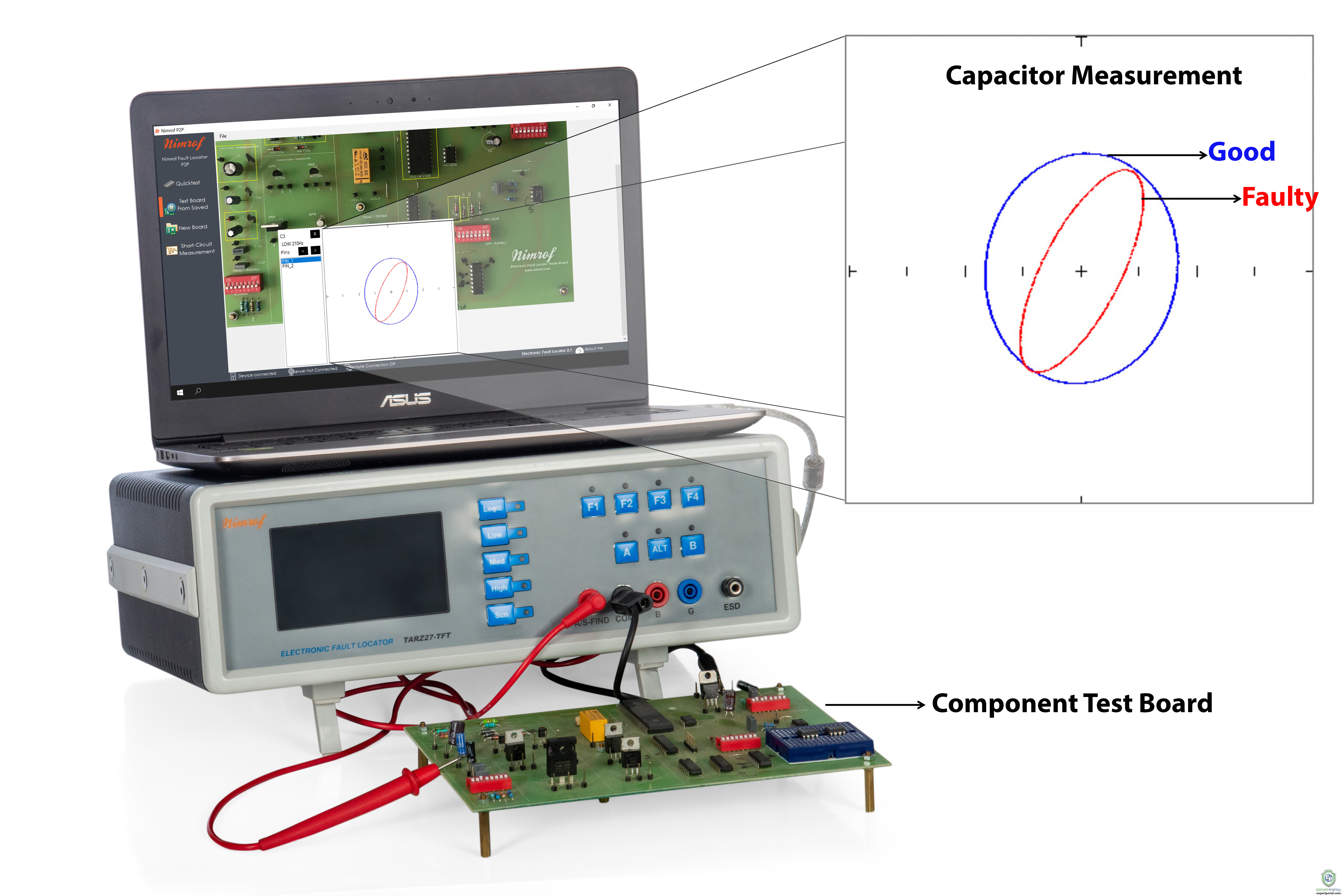

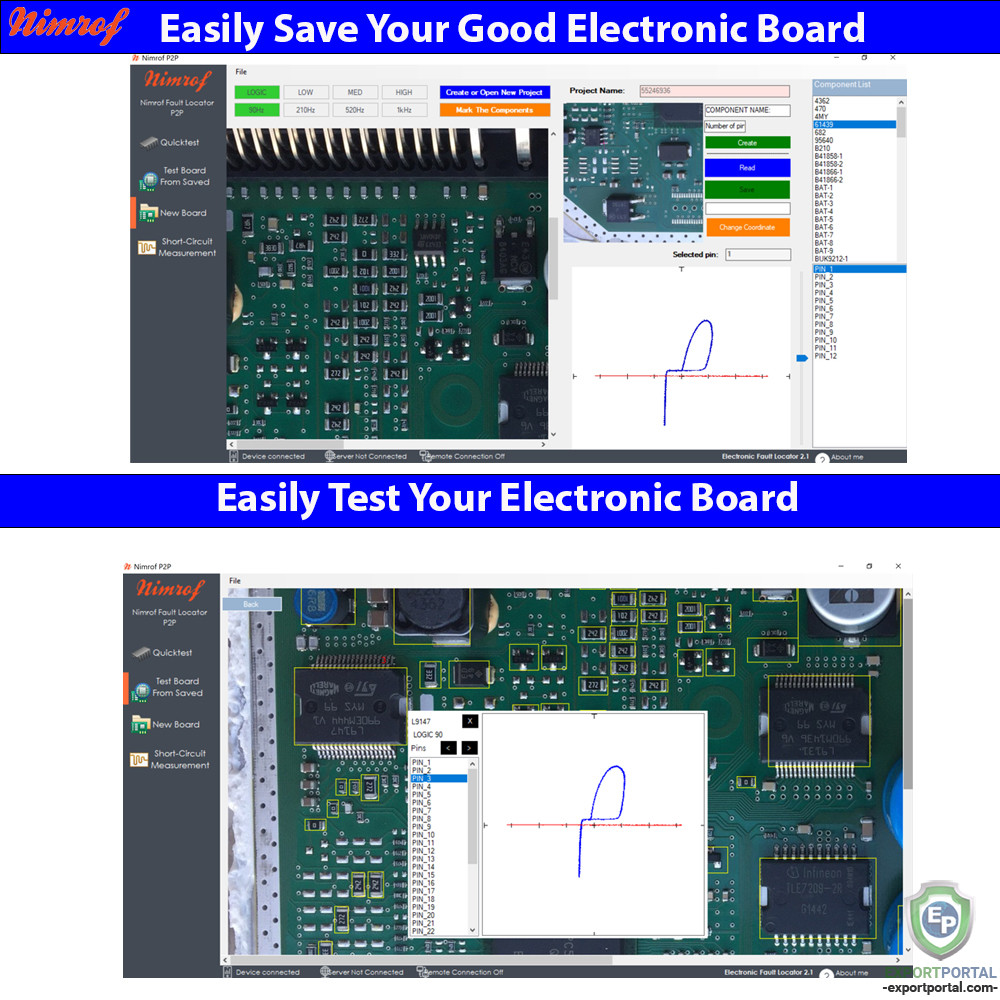

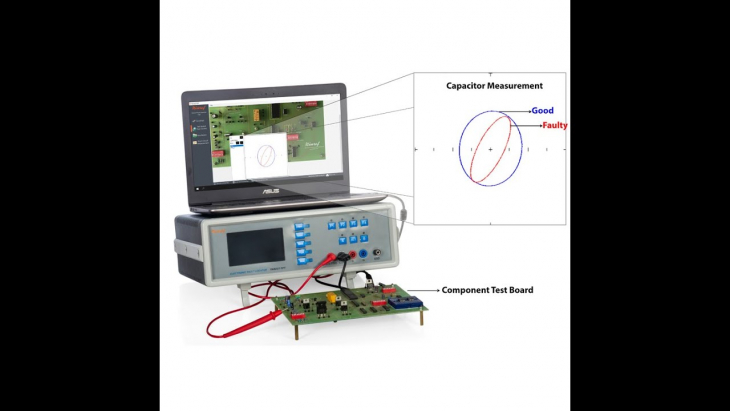

           Nimrof TARZ27-TFT Curve tracer allows more than 10 various voltage combinations, it operates by applying a low current AC signal to two points of electronic equipment. The current flow appear a vertical signature deflection, while the applied voltage appear a horizontal deflection. Together they form a unique V/A signature that represents the overall health of the device under test. Analyzing the signature can quickly determine whether the component is good, bad, or marginal.
