Curve Tracer and Short Circuit Finder

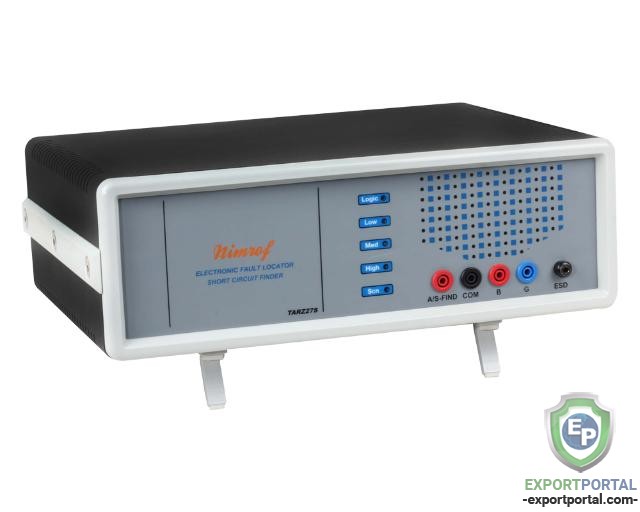

             Nimrof TARZ27S Electronic Fault Locator is designed to complement conventional test instruments in the debug and troubleshooting process. Nimrof TARZ27S  is suited for todays varied signal circuit cards where Analog and Digital are mixed together. It provides to find faulty component on the electronic board in a short time by using power-off test method.

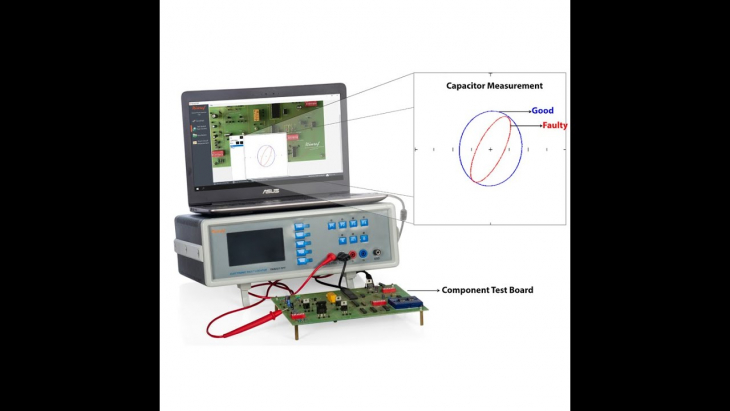

             Nimrof TARZ27S Component Tester allows more than 100 various voltage combinations, it operates by applying a low current AC signal to two points of electronic equipment. The current flow appear a vertical signature deflection, while the applied voltage appear a horizontal deflection. Together they form a unique V/A signature that represents the overall health of the device under test. Analyzing the signature can quickly determine whether the component is good, bad, or marginal.
