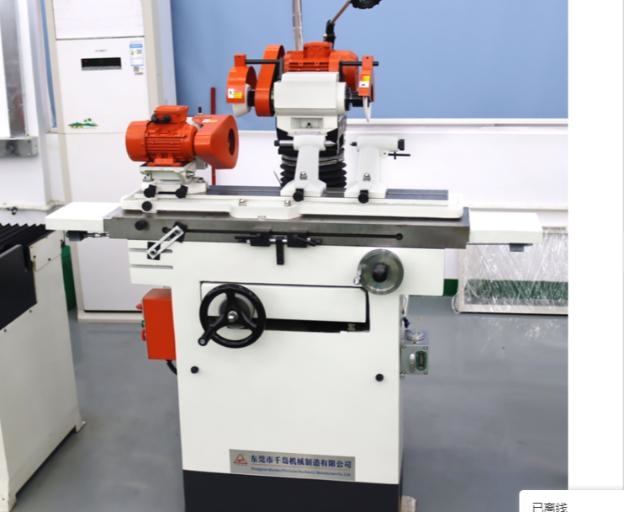

6025A Universal tools cutter grinder sharpener
B2B
Product information
- Year: 2019
Description
Features
♦This machine is specially suitable for grinding tools of HSS, tungsten carbide and other materials. Convenient for cylindrical, surface groove and forming surface grinding work. With the usage of additional attachments, can grind various gears, worm wheel hobs, forming cutters, ball end mills, twist drill bits, taper reamer, etc. ♦The grinding head structure is flexible, can be adjusted in two dimensions. The headstock can be rotated in both directions, has international standard NT50 taper from one side and Morse 5# taper from the other side for easy installation of different tools and attachments. The working table adopts loading linear guide rails, operating smoothly and precise. Parameters MQ6025A Swing dia.of workpiece 250mm Distance between centers 700mm Area if tge ioeratuib tavke 940*135mm Longitudinal travel of table 480mm Swing angle of table 120°(60°) Max travel of wheel head cross wertica 225mm Wheel center line of the min distance between the top 50mm Wheel center line of the max distance bewteen the top 265mm The max movement in the vertical direction 270mm Wheel certer line up to the top 200mm Wheel certer line down to the top 65mm Swing angle of wheel head in horizontal pline 360° Swing angle of wheel head in vertical pline 30°(±15°) The end taper of the spindle MT3# TAPER ANGLE Grinding head motor power 50Hz Power 0.85/1.1KW Speed 1400/2800rpm The speed of grinding head 3010/6010rpm The Motor of Cylindrical grinding attachment:50Hz Power 0.25KW Speed 1400RPM The size of the machine 1650*1150*1500mm The weight of the machine 940kg
Random Accessories universal grinding attachment 1 set Wheel dresser 1 set Wheel guard 2 pcs tailstock Each 1pcs Cutter saw support equipment 1 set cutter arbor Φ22,27,32 Each 1pcs drawbar M24(NT50) 1pcs inner hexagan spanner 1 set inner spindle mandrel 1pcs foot pad 3pcs tool box 1pcs Grinding wheel 2pcs Special Accessories bob sharpehing accessories 1set divided plate 1pcs Drills grinding attachment 1set Taper reaming grinding attachment 1set Swing angle of table 1set 3 jaw chuck 1set round magnetic chuck 1set universal-tilt rectangular magnetic chuck 1set Dust-free cleaner 1set cooling system 1set extral long wheel spindle 1set MT5# taper 1set Round spindle 1set electronic scale device 1set double-end wheel dresser 1set ball mill flank grinding atlachment 1set precision wheel dresser 1set machine vise 1pcs
Photos
