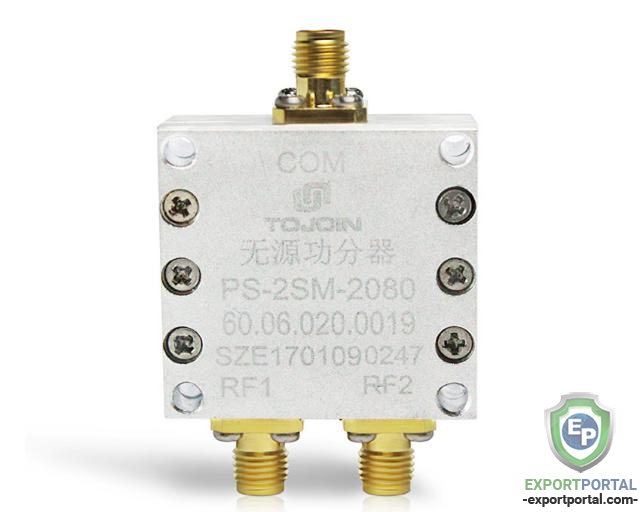

2 Way Power Splitter Power Divider with SMA Connector

Parameter Min. Typ.   Max. Frequency Range(GHz) 2   8 Insertion Loss(dB)
(With distribution ratio )   3.7 4 Isolation(dB) 18 20   VSWR     1.35 Amplitude Balance(dB)     0.3 Phase Balance(°)      5 Impedance(Ω)   50   Connectors   SMA   Power Capacity(W)   10   Operating Temperature(°C) -30 normal temperature +70 Physical Dimension(mm,+/-0.1)  — 49.6×33.5×12.8  — Weight(g)  30   35 40
