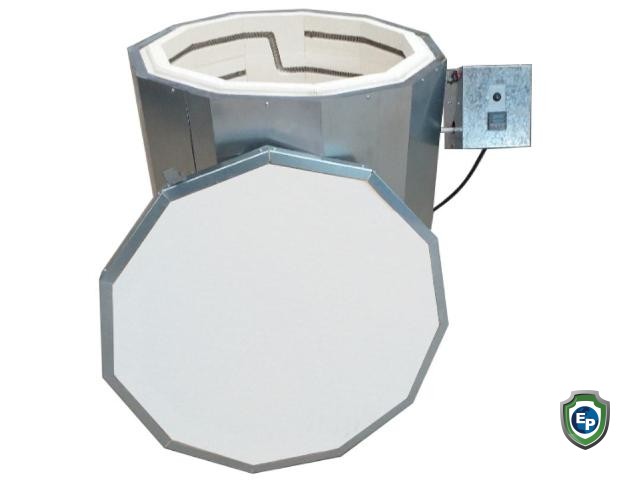

1240 C (2264 F) HENDECAGON Top-Loaded Programmable Kiln - 140 L

THIS 1240 C (2264 F) TOP-LOADED HENDECAGON (ELEVEN FACES) ELECTRICAL MUFFLE KILN WITH A 32-SEGMENT PROGRAMMABLE TEMPERATURE/TIME CONTROLLER AND 140 LITER SPACIOUS CHAMBER WAS ESPECIALLY DESIGNED FOR WORKING WITH CERAMICS, POTTERY, GLAZES AND OTHER TYPES OF MATERIALS THAT SHOULD BE HEATED UP TO 1240 C. THIS KILN HAS A 32-SEGMENTS (TEMPERATURE/TIME STEPS) PROGRAMMABLE TEMPERATURE-TIME CONTROLLER WITH A DIGITAL, OVER/LOW-TEMPERATURE REGULATION SECURE SYSTEM (FOR HOLDING SAME TEMPERATURE DURING THE WHOLE SOAKING PROCESS) AND A SMOOTHING CIRCUIT DIGITAL GUARD FOR ACCURATE READING AND STABILITY WORK OF THE PROGRAMMABLE CONTROLLER ON FLUCTUATIONS OF ELECTRICITY THAT IS VERY IMPORTANT OPTION FOR MOST CERAMIC, GLAZING AND POTTERY FIRING PROCESSES.

Technical specification:

• - Brand name: Technical Supermarket (London);
• - Model: RHC-140L;
• - Single phase 230V +/-10% or 3-phase, 400V +/-10% on request depending on required top temperature;
• - Power: 10000 - 30000 Watt on request depending on required top temperature and heating time;
• - Continuously working time - 36 hours;
• - Volume of chamber: 140 Cubic Liters;
• - Shape of chamber - Hendecagon (11 faces);
• - Powerful 3 or 6 heating elements around all walls;
• - Maximum working temperature -  on request up to 1240 C (2264 F);
• - Estimated kiln dimensions without electrical box in MM (inch): diameter 810 (32") x 1000 (40") height;
• - USEFUL chamber's dimensions in MM (inch): 600 (24") diameter x 650 (26") height;
• - Continuously working time on 1240 C: 20 minutes;
• - 32 time/temperature segments 2-line programmable temperature controller that will allows you automatically reach, hold (soak) and change up to 32 temperature/time points or, on request, with harting (HAR-7D) socket for programmer you may already have;- Industrial graded 64A contactor/s (no SSR);
• - Type of lid: lifting up by hands;
• - Safety switch for disconnecting power supply from heating elements when this lid is open or closed not properly;
• - Digital over/low-temperature regulation secure system;
• - Smoothing circuit (controller's stability work) digital guard;
• - Possibility to find present step and time on the step;
• - PFRS (Power Fail Recovery System) if you will instantly lost electricity connection for short time;
• - Material of chamber (inner): insulation bricks;
• - Industrial graded thermocouple;
• - Calibrated. Estimated accuracy of SOAKING temperature: +/- 1 C;
• - If not installed yet, you may require a standard screw-driver for fixing and electrical box with temperature controller and a thermocouple to this kiln by few screws (supplied).
• - Supplied on heavy duty movable stand;
• - Weight - 240 Kg;
• - Cable - 15 M;
• - Will be deliver on a pallet;
• - One year manufacture warranty and free technical (programming) support.

 Delivery specification: - The RHC-140 L top-loaded programmable electrical muffle kiln;- Industrial Thermocouple;- Electrical box with a programmable controller;- Downloadable user manual and temperature controller instruction/video;- One year manufacturer warranty include parts-by-post and free online technical support on Skype, WA, Zoom or by emails.

WE DELIVERED WORLDWIDE - PLEASE ASK US ABOUT CORRECT POSTAL CHARGES BEFORE PLACE AN ORDER. WE WILL TRY TO FIND FOR YOU A BEST COURIER. OR, IF YOU KNOW CHEAPER OPTION, ORGANISE A COLLECTION FROM OUR FACTORY IN LONDON, IG11 0JP, UK.

FREE DELIVERY IS AVAILABLE ONLY TO UK MAINLAND DESTINATIONS.

ALL AFTER-SELLING SERVICES AVAILABLE WORLDWIDE INCLUDE ONLINE HELP, PROGRAMMING AND PARTS-BY-POST.

OTHER SIZES AND TYPES OF TOP-LOADED KILNS ARE AVAILABLE ON REQUEST.
