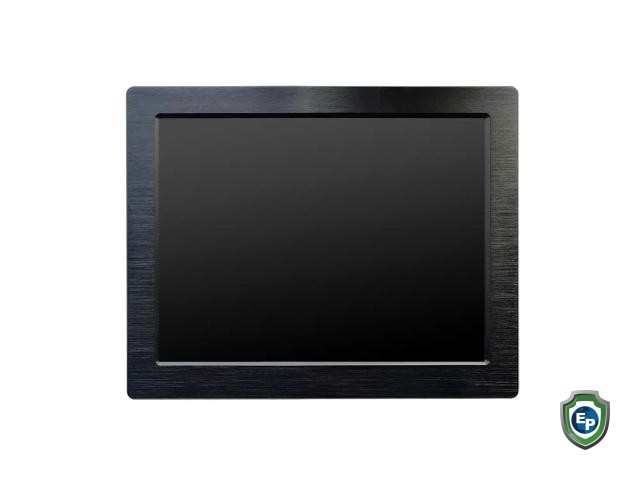

12 inch industrial panel pc with touch screen and RS422 RS485 RS232

IPC-12DF is a 12.1" industrial panel PC with touch screen or strengthen glass, 128G SSD, 4G Ram, SSD and ram size are optional. I/O configuration support to custiomize. Windows 10 and Linux OS support, for industrial equipments, factory automations machines.

• 12.1" XGA TFT LCD Panel support 1024x768 pixels
• 5mm Aluminum front bezel with resitive touch screen
• Intel Celeron J1900 Quad Core 2.0G CPU
• Supports Win7/Win8/Win10, Linux
• 2 x COM(1x RS232 + 1x RS422/RS485/RS232), 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC
• 1* Mini PCIe slot for wifi optional
• Standard DC 12V input (optional Wide range DC 9-36V input)
• Panel ( Flush ) mount with clips
• Standard VESA 100mm hole support stand , wall mount and swing arm

• Processor Intel Celeron J1900
• Chipset Intel Bay trail SOC
• Memory DDR3 4G RAM (Max 8G)
• Storage HDD/SSD size optional
• Ethernet 2 x 100/1000 LAN ports
• Video 1 x VGA, 1x HDMI
• Audio 1x Mic-in / Line-out
• USB Port 3 x USB 2.0, 1x USB3.0
• Serial Port 2 x COM(1x RS232 + 1x RS422/RS485/RS232)
• Power switch 1 x power switch
• Expansive Slot 1 x Mini PCIe
• Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter
• Construction Front aluminum bezel(5 mm) and steel chassis

• Display Type 12.1" XGA TFT LCD(LED backlight)
• Resolution 1024 x 768
• Max.color 16.2M
• Luminance 400 cd/m2
• View Angle 150°(H) , 135°(V)
• Pixel Pitch 0.297 x 0.297 mm
• Contrast Ratio 300:1
• Response Time 8 ms
• LCD MTBF 50, 000hrs

• Touch screen Resistive type touch screen
• Wireless LAN Meet IEEE802.11b/g standard(WiFI)
• DC Power Input Wide Range 9~36v DC input

• Operate temperature -10°C~ 60°C (-14~140°F)
• Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
• Storage humidity 5% to 95% @40°C non-condensing
• Anti-Vibration 17HZ-500 HZ 1G PTP
• Anti-Shock 1G / peak( 11m sec)

• Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
• Output DC12V, output 32W


• Dimensions (WxHxD) 315 x 250 x 49mm
• Weight Net: 4.6kg , Gross:6.8 kg
